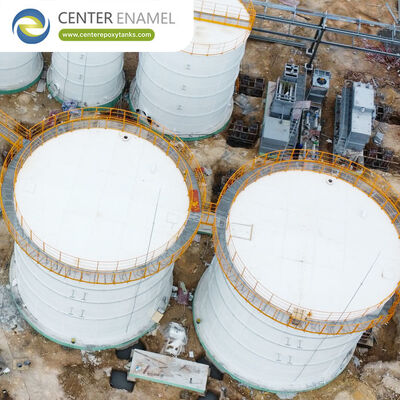

FBE Disinfection Water Tanks: The 2026 Engineering Standard for High-Chemical Contact Stabilization

In municipal water purification and industrial food and beverage processing, the disinfection phase represents the final, non-negotiable barrier protecting public safety and product biosecurity. Whether using chlorination, ozonation, or chloramining, the Disinfection Water Tank (frequently designated as a Contact Tank or Clearwell) requires prolonged, uniform hydraulic retention time under concentrated chemical exposure.

As of 2026, Fusion Bonded Epoxy (FBE) bolted steel tanks have become the premier structural standard for water disinfection loops. By combining the structural strength of factory-fabricated carbon steel with an advanced, molecularly cross-linked polymer barrier, FBE tanks offer long-term resistance to aggressive oxidizing agents while optimizing facility budgets.

1. What is an FBE Disinfection Water Tank?

An FBE disinfection water tank is a modular, bolted containment vessel engineered with a series of internal baffle walls to maximize water contact time with chemical disinfectants.

Unlike traditional field-applied liquid paints that can degrade under localized chemical stress, the Fusion Bonded Epoxy process takes place under rigorous factory conditions. Carbon steel panels are grit-blasted to a white finish, pre-heated to temperatures between 180°C and 230°C, and electrostatically sprayed with dry polymer powder. The powder melts, flows, and chemically cross-links, forming an inseparable protective barrier permanently bonded to the steel substrate. This produces a high-density, glass-smooth internal lining that isolates the structural steel shell from aggressive chemical氧化 environments.

2. Technical Performance: Resisting High-Oxidation Stress

Water disinfection requires the constant dosing of powerful oxidizing agents, which create an aggressive chemical environment that rapidly degrades conventional storage materials. FBE technology is specifically engineered to handle these intense parameters:

• Immunity to Concentrated Oxidizers: Chlorine ($text{Cl}_2$), sodium hypochlorite ($text{NaOCl}$), and chlorine dioxide ($text{ClO}_2$) are highly corrosive to standard metals and induce microbially induced carbonation in concrete. FBE coatings are molecularly dense and chemically inert, resisting continuous exposure to high residual disinfectant levels.

• Ozone Compatibility: In advanced oxidation processes (AOP), ozone ($text{O}_3$) is increasingly utilized for rapid pathogen destruction. Premium FBE formulations provide high oxidative resistance, preventing the coating blistering or chalking common in softer elastomeric linings.

• Hydrodynamic Baffle Integration: To prevent "short-circuiting" (where water passes through the tank too quickly without adequate disinfection), contact tanks rely on intricate internal baffle configurations. The modular bolted design of FBE tanks allows for the seamless internal anchoring of bolted steel or fiberglass (FRP) baffle walls.

• 100% Factory Holiday Testing: In a high-concentration chemical contact environment, a single localized coating defect can lead to rapid pitting corrosion. Every individual FBE panel undergoes a high-voltage electronic Holiday Test ($geq 1100text{V}$) at the factory to locate and eliminate microscopic pinholes before flat-packing and transport.

3. Comparison Matrix: FBE vs. Concrete vs. Stainless Steel in Disinfection Units

4. Engineering Standards and Global Compliance

To satisfy strict municipal infrastructure mandates, international public health regulations, and pass rigorous industrial bidding screens, premium FBE disinfection water tanks—such as those manufactured by global leaders like Center Enamel (Shijiazhuang Zhengzhong Technology)—comply with the following engineering codes:

1. NSF/ANSI 61 & WRAS: The definitive international health effect standards ensuring that the water-contact polymer resin does not contribute volatile organic compounds (VOCs) or toxic compounds to drinking water supplies.

2. AWWA D103-19: The premier global standard for factory-coated bolted carbon steel liquid storage systems, validating structural calculations against dynamic hydraulic surges and seismic stress profiles.

3. ISO 28765:2016: The specific international standard governing high-performance coating quality and holiday testing for water and industrial effluent storage.

4. ASCE 7-22 / Eurocode 3: Structural design engineering parameters ensuring the modular tank calculates for seismic resilience and extreme wind loads up to 250 km/h.

5. Strategic Applications in Commercial Water Loops

FBE disinfection and contact tanks serve as critical safety nodes across diverse environmental sectors:

Municipal Drinking Water Clearwells

Acting as the final contact stage following primary filtration. Water is held alongside precisely dosed chlorine for a calculated CT values (Concentration $times$ Time) to achieve log-reduction of pathogens before entry into the municipal grid.

Food and Beverage Clean-In-Place (CIP) Balancing

Holding heavily chlorinated or ozonated water stocks designated for sanitizing automated process lines, rinsing packaging, or treating raw ingredient water supplies.

Reclaimed Water Sanitization

Serving as the tertiary polishing step in advanced wastewater recycling facilities, neutralizing pathogens before the treated effluent is discharged for irrigation, industrial cooling, or aquifer recharge loops.

Conclusion: Future-Proofing Final Water Quality

For environmental engineers, municipal water utility directors, and EPC contractors focused on maximizing Return on Investment (ROI), the FBE disinfection water tank represents the most secure, scalable, and economical asset for 2026. By utilizing a modular, top-down bolted assembly method with synchronized hydraulic jacking systems, these tanks eliminate the need for high-altitude scaffolding or intensive on-site welding, reducing installation timelines by up to 50%. By eliminating the structural cracking, chemical leaching, and gas-pocket trapping vulnerabilities of concrete, FBE technology ensures safe, compliant, and zero-maintenance disinfection management for an operational lifespan exceeding 30 years.

Are you currently designing a final disinfection loop or upgrading a clearwell contact tank for a municipal or industrial water plant, and would you like a detailed technical proposal including sizing, calculated baffle layouts, and structural engineering drawings for your required capacity?
